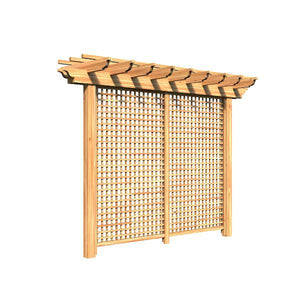

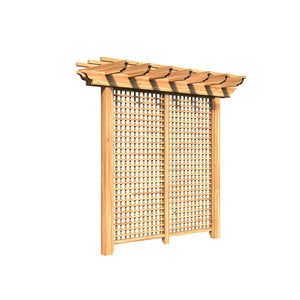

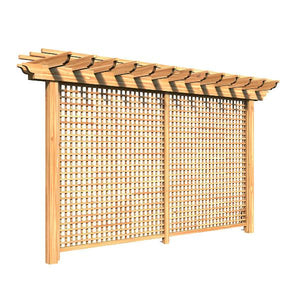

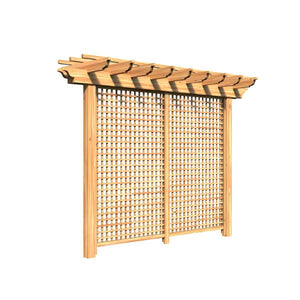

Treated Pine Monterrey Pergola with Lattice

This Monterrey Pergola features kiln dried, durable, and long lasting Treated Pine. Its included options are In-Ground Mount, Decorative End Cut, 24" Top Runner Spacing On Center, Standard Braces, and a Lattice Wall Privacy Panel. Available in 10 different sizes, it is likely to fit the needs of any customer.

  • Decorative End Cut
  • 12" On Center Top Runner Spacing
  • Standard Braces
  • Made in the U.S.A.
  • Top Runners: 2" x 2" Runners - 12" On Center
  • Beams: 2" x 8" Double Beams
  • Main Runners: 2" x 6" Runners - approx 16" On Center

Material: Treated Pine
Hardware: Galvanized Steel
Use: Outdoor

Dimensions:
3' x 10' Pergola: Outside of Posts: 3' x 10', Inside of Posts: 3' x 110", Post Dimensions: 5" x 5" - 10' Tall
4' x 10' Pergola: Outside of Posts: 4' x 10', Inside of Posts: 4' x 110", Post Dimensions: 5" x 5" - 10' Tall
3' x 12' Pergola: Outside of Posts: 3' x 12', Inside of Posts: 3' x 134", Post Dimensions: 5" x 5" - 10' Tall
4' x 12' Pergola: Outside of Posts: 4' x 12', Inside of Posts: 4' x 134", Post Dimensions: 5" x 5" - 10' Tall
3' x 14' Pergola: Outside of Posts: 3' x 14', Inside of Posts: 3' x 158", Post Dimensions: 5" x 5" - 10' Tall
3' x 16' Pergola: Outside of Posts: 3' x 16', Inside of Posts: 3' x 182", Post Dimensions: 5" x 5" - 10' Tall
4' x 14' Pergola: Outside of Posts: 4' x 14', Inside of Posts: 4' x 158", Post Dimensions: 5" x 5" - 10' Tall
4' x 16' Pergola: Outside of Posts: 4' x 16', Inside of Posts: 4' x 182", Post Dimensions: 5" x 5" - 10' Tall
3' x 8' Pergola: Outside of Posts: 3' x 8', Inside of Posts: 3' x 86", Post Dimensions: 5" x 5" - 10' Tall
4' x 8' Pergola: Outside of Posts: 4' x 8', Inside of Posts: 4' x 86", Post Dimensions: 5" x 5" - 10' Tall

Weight:
3' x 10' Pergola: Weight: 700 lbs
4' x 10' Pergola: Weight: 740 lbs
3' x 12' Pergola: Weight: 770 lbs
4' x 12' Pergola: Weight: 810 lbs
3' x 14' Pergola: Weight: 840 lbs
3' x 16' Pergola: Weight: 910 lbs
4' x 14' Pergola: Weight: 880 lbs
4' x 16' Pergola: Weight: 950 lbs
3' x 8' Pergola: Weight: 630 lbs
4' x 8' Pergola: Weight: 670 lbs

SKU #: HBWTPMPPL3x10CVD, HBWTPMPPL4x10CVD, HBWTPMPPL3x12CVD, HBWTPMPPL4x12CVD, HBWTPMPPL3x14CVD, HBWTPMPPL3x16CVD, HBWTPMPPL4x14CVD, HBWTPMPPL4x16CVD, HBWTPMPPL3x8CVD, HBWTPMPPL4x8CVD
Assembly: Some assembly required
Special Delivery: Standard Curbside Delivery
Returns: Due to large size, this item is final sale and non-returnable, with the exception of items with defects.
Lead Time: Ships in 7-14 business days
