All Weather Electronic Ignition System

See More By Fire Pit Art

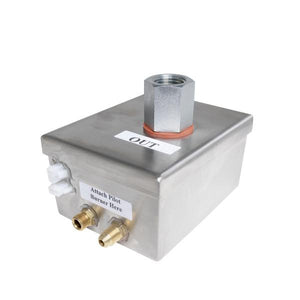

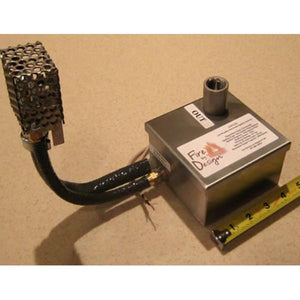

The All Weather Electronic Ignition System by Fire Pit Art is a field serviceable natural gas ignition system designed for use in commercial and residential settings. Get a comprehensive installation kit that includes all of the necessary components to properly install this electronic ignition system. It's designed with safety in mind and includes safeguards against electrical overload and flame burnout.

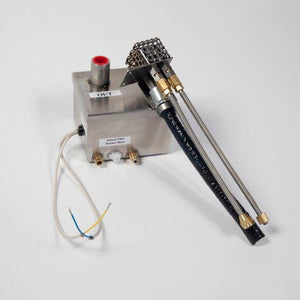

Field Serviceable AWEIS Mini Commercial Grade with 12" Commercial Grade Pilot Burner / Natural Gas. Includes 24 volt AC Transformer, Pilot Burner Assembly, Ignition Control Module, Heat Deflector Shield, and Install Instructions. (Inlet Size: 3/8" FIP Outlet Size: 1/2" FIP) - 125K BTU

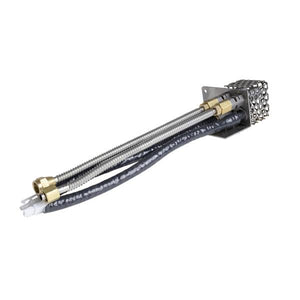

  • 18" Pilot Burner - CG 10 0.00 0.00 18" Long Commercial Grade Pilot Burner
  • Flame / Heat Sense: Thermopile
  • Ignition Type: Hot Surface Ignition (Glow Plug)
  • Ignition Sequence: Intermittent Pilot
  • Ignition Source: Pilot
  • Max. Btu Output: 125K Btu/hr
  • Inlet / Outlet Size: ½" FPT
  • Operating Voltage: 24 volts ac
  • Inlet Gas Press. Limit: 2.0 psi
  • Valve Enclosure Dim.: 4 3/8" x 4 3/8" x 4 3/8" (tall)
  • Free shipping!

Always consult an electrician to install your AWEIS "All Weather Electronic Ignition System."

All components are warranted for a period of 1 year after the date of purchase by the original owner against defects in materials and workmanship under normal use. This warranty does NOT cover normal wear and weathering, assembly and/or maintenance OR use in a commercial application. At the Manufacturer's sole discretion, products under warranty will be repaired and/or replaced at no charge to the customer. Any returns sent back must be sent via prepaid freight and in the original retail packaging.

Proof of purchase will be required before warranty service is rendered. The sales receipt is the only valid proof of purchase. Failures and/or damage which result from accident, negligence, misuse, abuse, neglect, mishandling, alteration or modification, failure to maintain, improper assembly or maintenance, service by unauthorized agency, or use of unauthorized components or damage that is attributable to acts of God are NOT covered.

Use: Outdoor
Dimensions: 3"H x 3.75"W x 3.50"D

Weight: 2 lbs

Assembly: Assembly Required
Warranty: 1 Year Limited Warranty
